Arbitrary Bending (S-Type)
Freely bends into any shape and holds its form, perfect for curves and letters.
4-in-1 RGBW
Combines RGB colors and tunable white light (2700K-6500K) for dynamic effects.
Customizable Length
Easily cut every 100mm (3.94") for precise installation.
Wide Application
Ideal for signage, light boxes, storefronts, and ambient lighting.
Smart Dimming
Compatible with PWM, 0-10V, DALI, and DMX control systems.
High Efficiency
Features 60 LEDs/m with high luminous efficacy (up to 99 lm/W).
| Model | Wave length & CCT range | Luminous flux (lm/m) | LED type | CRI | Beam angle (degree) | Cutting Points (mm) | Reel/m | Light effect (Im/w) | Rated watt (W/m) | IP | |
| SC-5050RGBW-06-XX -60-24-8-IP20-5M | W | 2700-6500K | 521-554 | 5050 | 80 | 120 | 100 | 5 | 93-99 | 5.6 | IP20 |
| R | 620-630nm | 98 | / | 24 | 4.1 | ||||||
| G | 515-530nm | 283 | 59 | 4.8 | |||||||
| B | 460-470nm | 67 | 14 | 4.8 | |||||||

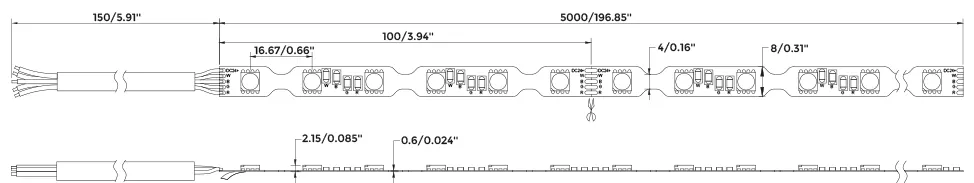

Unit: mm/inch
